Station
CS-FFD-2-R

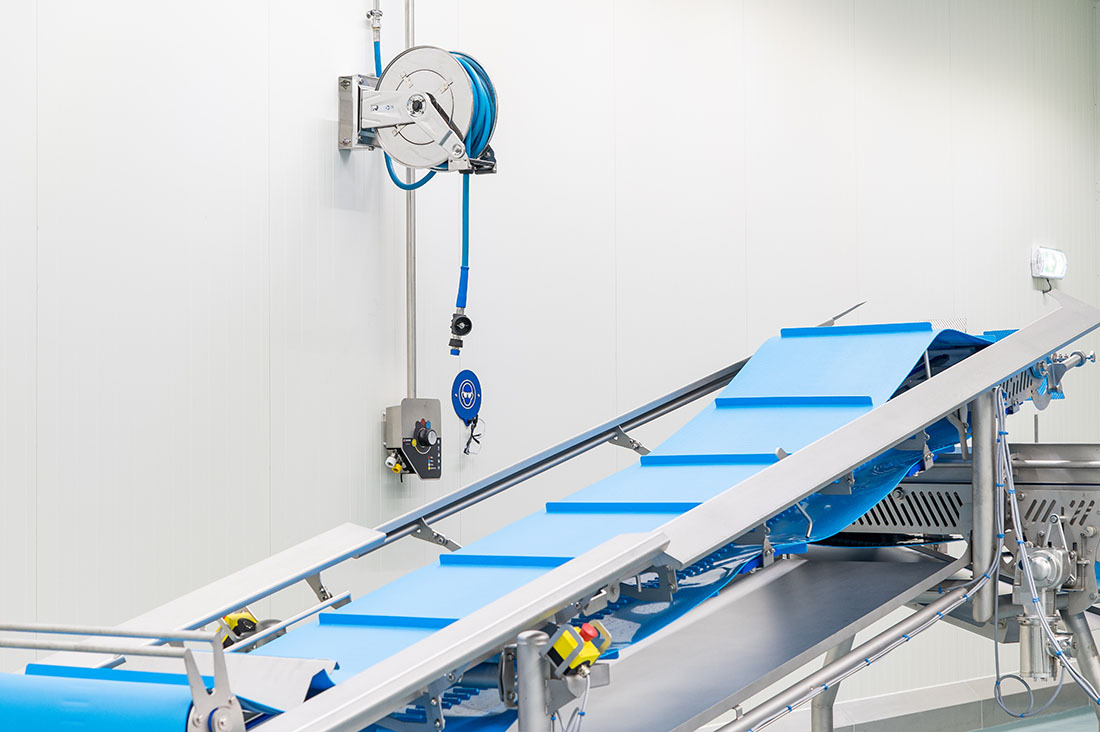

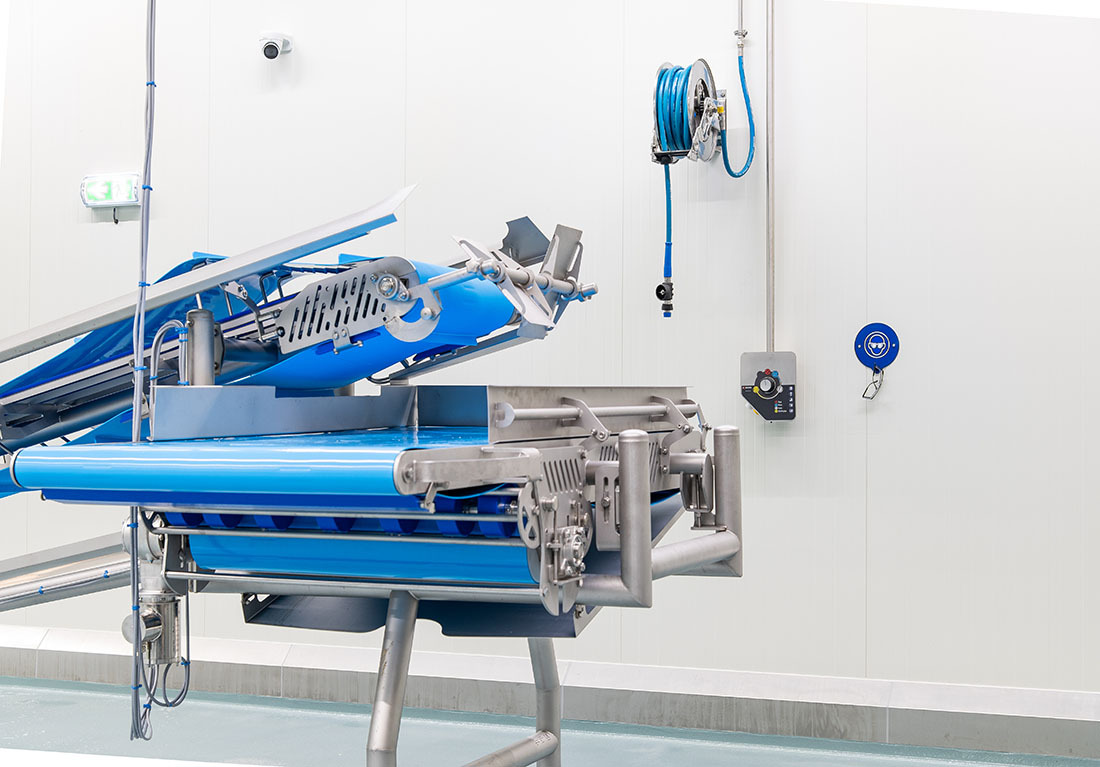

This CS central satellite is standard equipped with a stop and 4 positions: 2x foaming (F), 1x rinsing (R) and 1x disinfection (D). The control valves (manifold) are mounted against the ceiling or, preferably, in a technical attic (the picture below is indicative). The two pressure regulators each control one of the foam functions.
The CS central satellites and the CBU central chemical dosing units are connected via a pipeline network. For a complete description, please visit the general page of the central purchase stations.
Read more![disinfection and foaming installations centralised cleaning systems CS central station satellite by BoonsFIS](https://www.boonsfis.com/uploads/products/image/227/station-cs-ffd-2-r.png?t=1704804618)
Benefits
- Supplied with certificate of stainless steel used (AISI 1.4301), no use of ferritic steels (400 series) that are magnetic and liable to corrode
- High quality A-brand components with high chemical resistance (Viton or EPDM seals depending on the chemicals used)
- Very clean-lined design and hygienic version with a minimum of piping on the walls
- Fully stainless steel housing for perfect hygiene
- Stainless steel non-return valves prevent the cleaning products from mixing
- Operated by a stainless steel pneumatic selector switch
- Very accurate control and dosage
- Simple control button
- Settings can no longer be changed
Options
![Custom-made work](https://www.boonsfis.com/images/product_options/image/46/.png?t=1568713404)
Custom-made work
