Chemicals dosing unit
CBU-60

Chemicals dosing unit
CBU-60

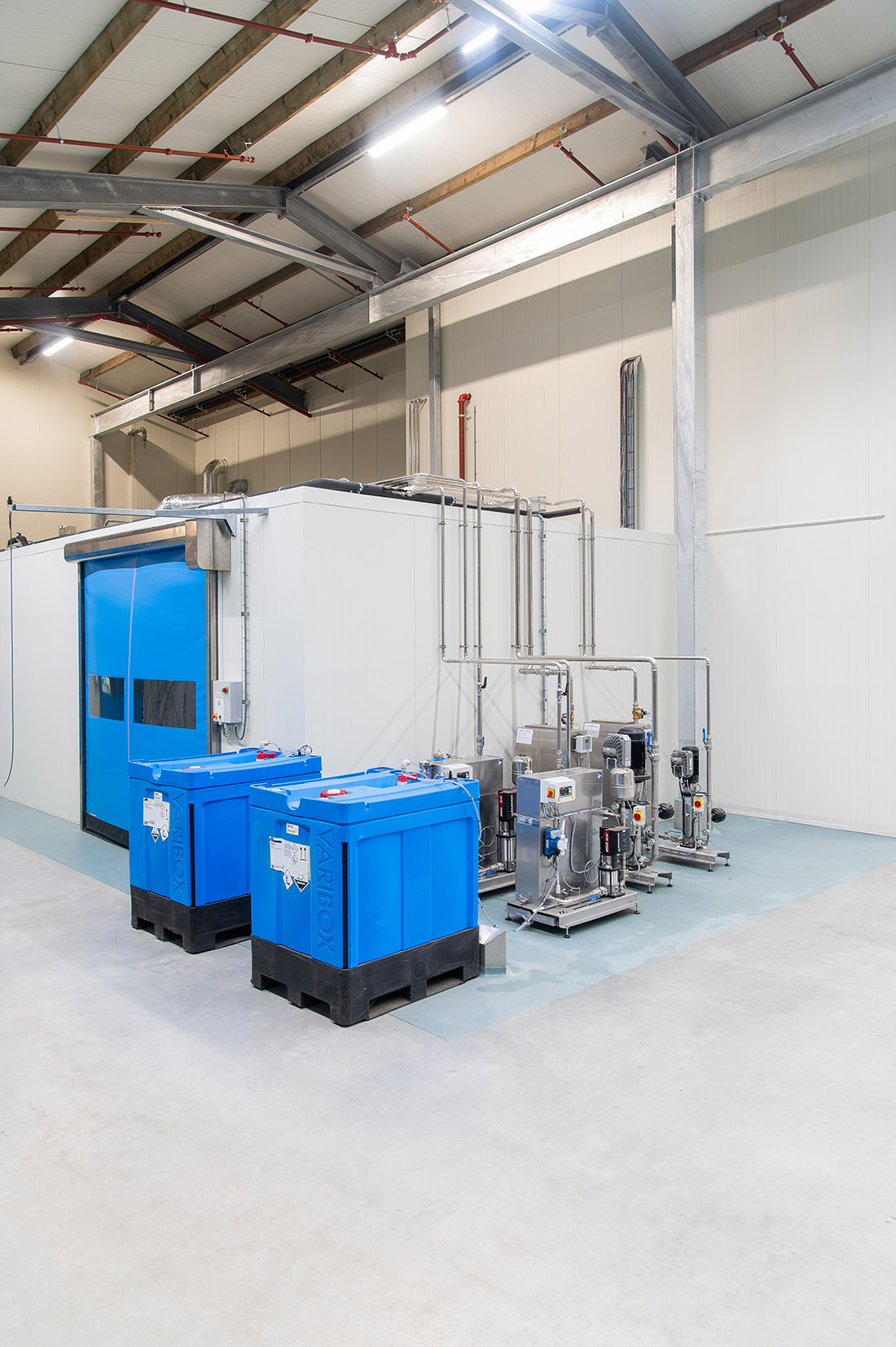

The CBU is a central chemicals dosing unit connected by stainless steel piping to the CS central draw-off satellites (one satellite and one reel set is provided for each location to be cleaned). The unit is assembled on a stainless steel sandblasted frame as standard.

The frequency-controlled feed pump at 7 bar controls a dosing pumps (type Grundfos CRIE). The dosing pump is controlled by pulse and flow rate measurement and ensure perfectly accurate dosing. The built-in own programming ensures perfect operation of the unit, and the parameters can be simply changed on the display. The unit is also provided with run-dry protection.

HDPE chemical tank

For the storage of these chemicals at our CBU unit, we chose (black) HDPE tanks. The chemicals (cleaning agents and disinfectants) used in cleaning applications are aggressive substances that corrode stainless steel over time. This results in increased maintenance costs and repair costs. HDPE (plastic) has endless possibilities and practical solutions. After all, it is very polyvalent and can be used almost everywhere due to its specific characteristics:

  • Extremely resistant to heat, corrosion, UV light
  • Light and strong
  • Ecological, highly sustainable and 100% recyclable
  • Certified (approved for food contact according to LFGB and EC, DIN 4102 B2 normal flammability, compliance with food law EU 10/2011

BOONS FIS is happy to help you choose between a centralised and a decentralised installation. Read more about both options here!

Read more

disinfection and foaming installations centralised cleaning systems chemical dosing unit CBU with HDPE chemistry tank by BoonsFIS

Benefits

  • standard durable HDPE chemical tank
  • 100% accurate chemical dosing so large chemical savings of up to 40% are possible
  • Frequency-controlled pressure-booster pump (no pressure drop during cleaning) and dosing pump(s)
  • Extra protection with pressure transmitter
  • Run-dry protection pump and dosing pump(s)
  • Electronic dosing pump(s) with code setting
  • Dosing of the chemicals by flow rate measurement, pulse and frequency control
  • 120-litre dosing tank with automatic filling and temperature monitoring

Options

Custom-made work

Custom-made work

Water filter

Water filter
