Main station
SWU-20/1-GR-FF-R

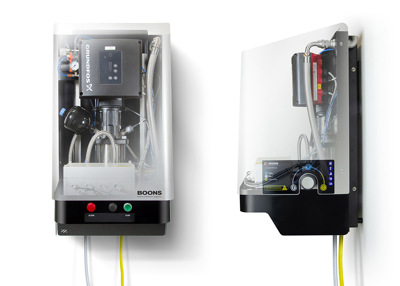

The SWU-20/1-GR-FF-R is a cleaning unit, made up of a centrifugal frequency controlled booster pump with integrated satellite and 1 pressure regulator. This main station has 3 functions: rinsing (R) and 2 x foaming (F/1 and F/2)). Compressed air is added to the foam functions (F/1 and F/2), both at the same compressed air pressure. If no compressed air is available where the unit has to be cleaned, the SWU-K-20/1-GR-FF-R (with integrated compressor) is ideal.

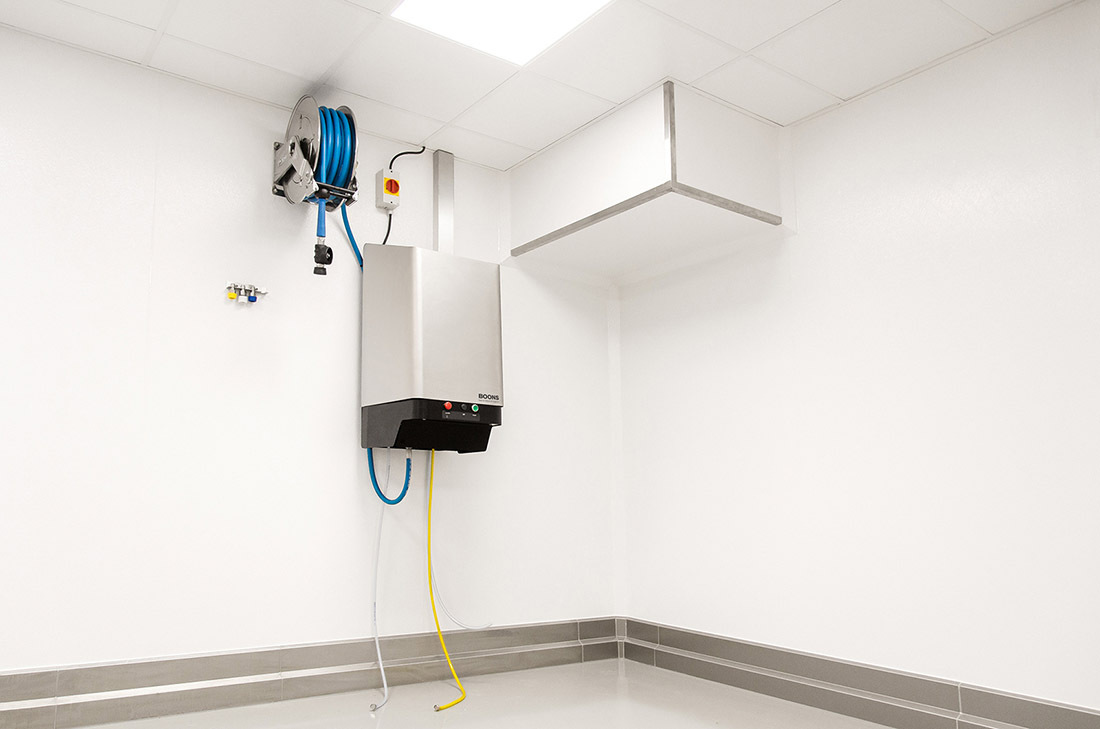

This cleaning unit is wall-mounted and available with 2 chemical inlets for diluted or concentrated chemicals (foam and/or disinfectant product). The system is easily operated by means of an electromechanically operated switch, with a choice between rinsing, foaming and disinfecting.
The SWU is always connected to a reel with cleaning hose.
Read more
Video
Benefits
- Supplied with certificate of stainless steel type used (AISI 1.4301). No use of ferritic steels (400 series) that are magnetic and liable to corrode
- Centrifugal frequency-controlled pressure-booster pump with integrated satellite
- Robust construction and elegant finish
- Stainless steel protective cover for motor/pump part
- Electromechanical switch, with choice from rinsing, foaming and disinfection
- Simple to maintain
