Station
CS-FD-1-RR

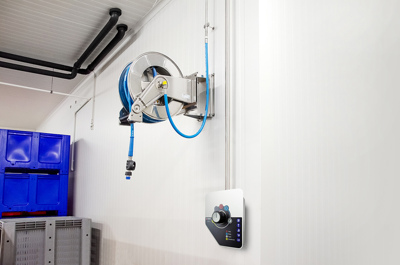

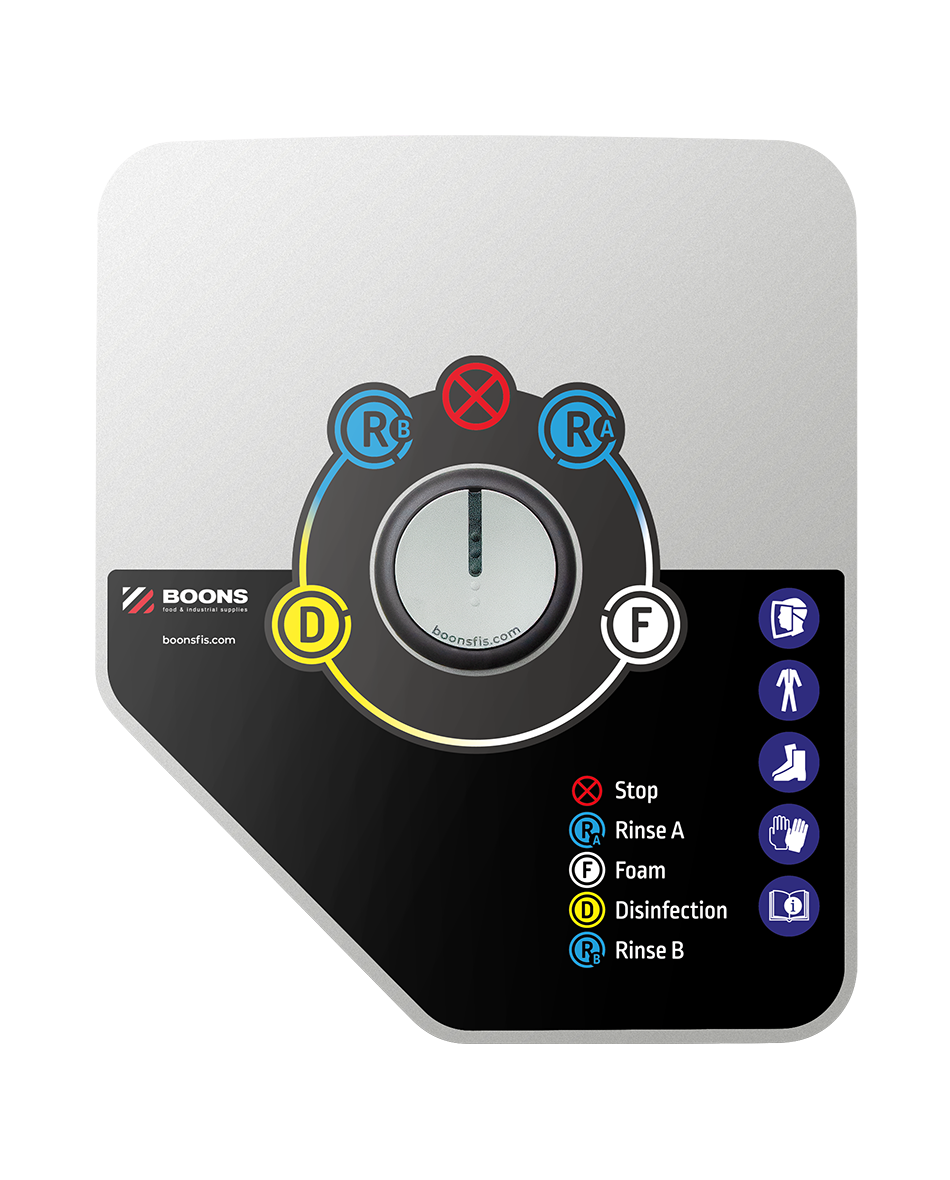

This central satellite (CS) has 2 rinse positions (R), a foam function (F), a disinfection function (D) and a stop. The control valves are mounted in a technical attic or against the ceiling. To ensure a nice, adherent foam production, one pressure regulator is provided for the foam function. The choice for 2 rinsing functions is made, for example, when there is a need for rinsing at 2 different temperatures (hot/cold) or 2 different pressures.
The CS central satellites are connected to the CBU central chemical dosing units via a pipeline network. You can find a complete description of the central cleaning system here.
Read moreBenefits
- Supplied with certificate of stainless steel used (AISI 1.4301), no use of ferritic steels (400 series) that are magnetic and liable to corrode
- High quality A-brand components with high chemical resistance (Viton or EPDM seals depending on the chemicals used)
- Very clean-lined design and hygienic version with a minimum of piping on the walls
- Fully stainless steel housing for perfect hygiene
- Stainless steel non-return valves prevent the cleaning products from mixing
- Operated by a stainless steel pneumatic selector switch
- Very accurate control and dosage
- Simple control button
- Settings can no longer be changed
