Pressure-booster unit

Pressure-booster unit

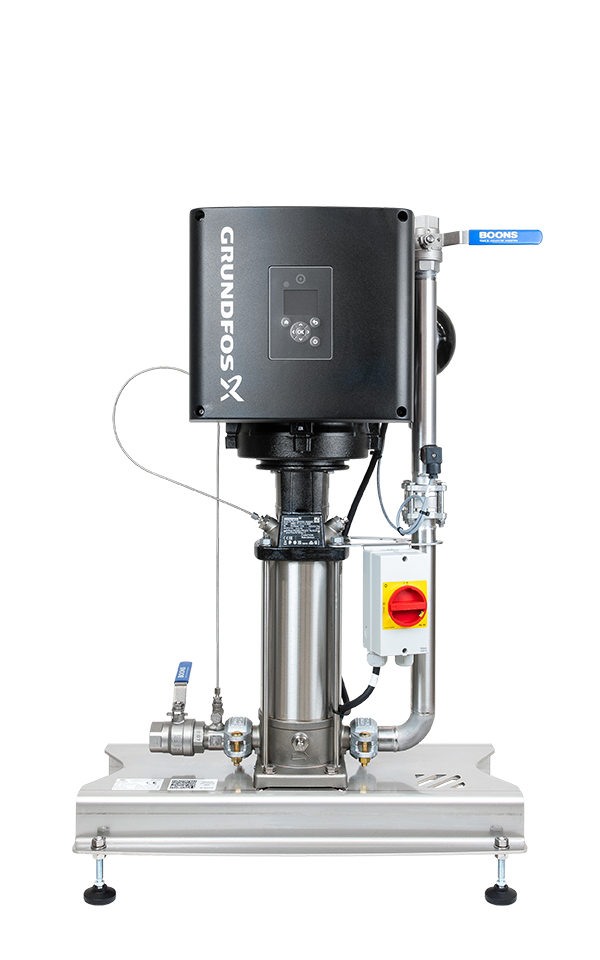

The eSPU-20/9-GR is a pressure-booster unit that meets the highest quality requirements. Thanks to its specific structure and control, this unit is very reliable and can be used in various sectors.

The installation is equipped with 1 stainless steel frequency-controlled centrifugal pump. The use of this type of pump ensures that the pressure boosting unit always produces the correct power depending on the water consumption. This means that pressure and flow differences are virtually excluded.

The eSPU-20/9-GR has a motor power of 7,5kW and provides a flow rate of 185 l/min for up to 9 simultaneous users.

The eSPU-20/9-GR pressure-booster unit unit is constructed with a multi-stage stainless steel centrifugal pump. A structure with structured fans is used and ensures a higher efficiency.

The automatic start-stop system in combination with the intelligent control ensures low consumption of electricity and water and reduces maintenance to a minimum. In addition, the unit is equipped with three different shutdown programs to ensure that the pump switches off automatically under all circumstances.

This unit can optionally be expanded with a water tank of 200, 400, 800 or 1600 liters.

This pressure boosting unit is provided with the necessary certificates.

Read more


  • Highly compact design and hygienic version
  • Control and start/stop only by pressure transmitter
  • Pump restart automatically after power loss, for example
  • Pump and pump components are made of AISI 1.4301 stainless steel (corrosion-proof)
  • Display screen: pressure, power (Amp.), speed (Hz), error message and start/stop reset
  • Dust-free and water-resistant frequency control for pressure-booster pump
  • Automatic start/stop system
  • Constant pressure in the piping
  • Quiet and easy to maintain
  • Run-dry protection
  • Lockable operating switch
  • Standard built-in start-up at the adjustable low pressure, so frequent starting up caused by any leaks in the pipe system are prevented
