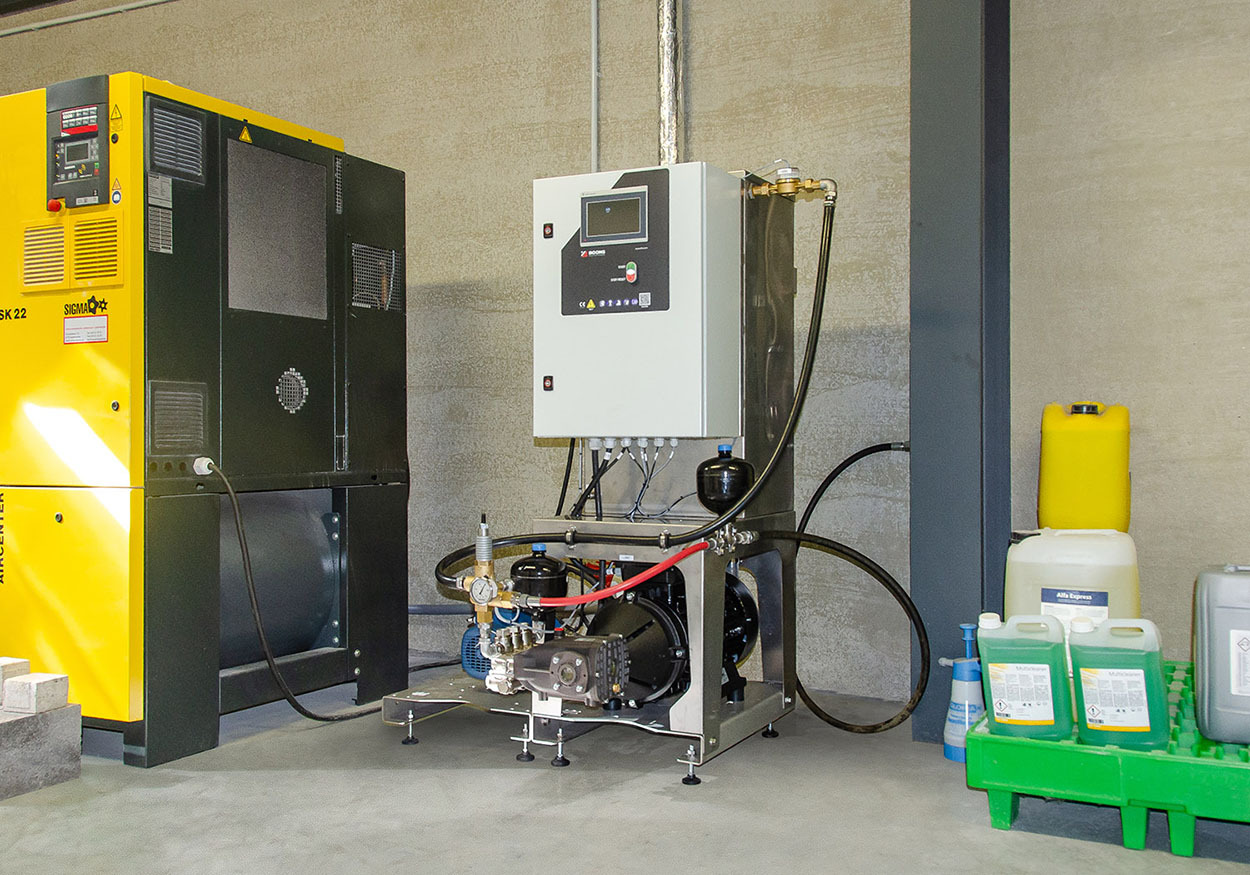

High pressure unit HDU1
The HDU1 industrial high-pressure units are stationary cold water high-pressure cleaners that are economical in use and have virtually unlimited applications. These compact units are cleaning installations for industrial and intensive use and are ideal for cleaning production areas, machines and other applications.
This unit is available in many versions, depending on the user's needs, there are various options in pressure and flow. This HDU1 version is built around 1 pump.
The motor/pump section is also protected against splashing water and contamination by means of a stainless steel cover. In addition, this hygienic construction offers you the opportunity to place this installation in the production area instead of in a separate technical room.
This high-pressure unit is standard designed for a water temperature up to 40°C, but in a different version it can also handle a water temperature up to 85°C.
Various options are possible with this unit to achieve lower energy consumption and a longer lifespan. For example, a frequency convertor ensures that the motor runs at a certain speed, depending on the number of users.
Read more
Benefits
- PLC-control combined with sensors
- Protected against pipe breakage and overpressure
- Thermal motor protection
- Electromagnetic valve
- Economical in use
- Stainless steel frame and float chamber
- Dry running protection and temperature protection on the float tank
Options
Custom-made work
Temperature monitoring
Variable-frequency drive
HT pump
Water filter
Heating water
Pneumatic PN4 valve
