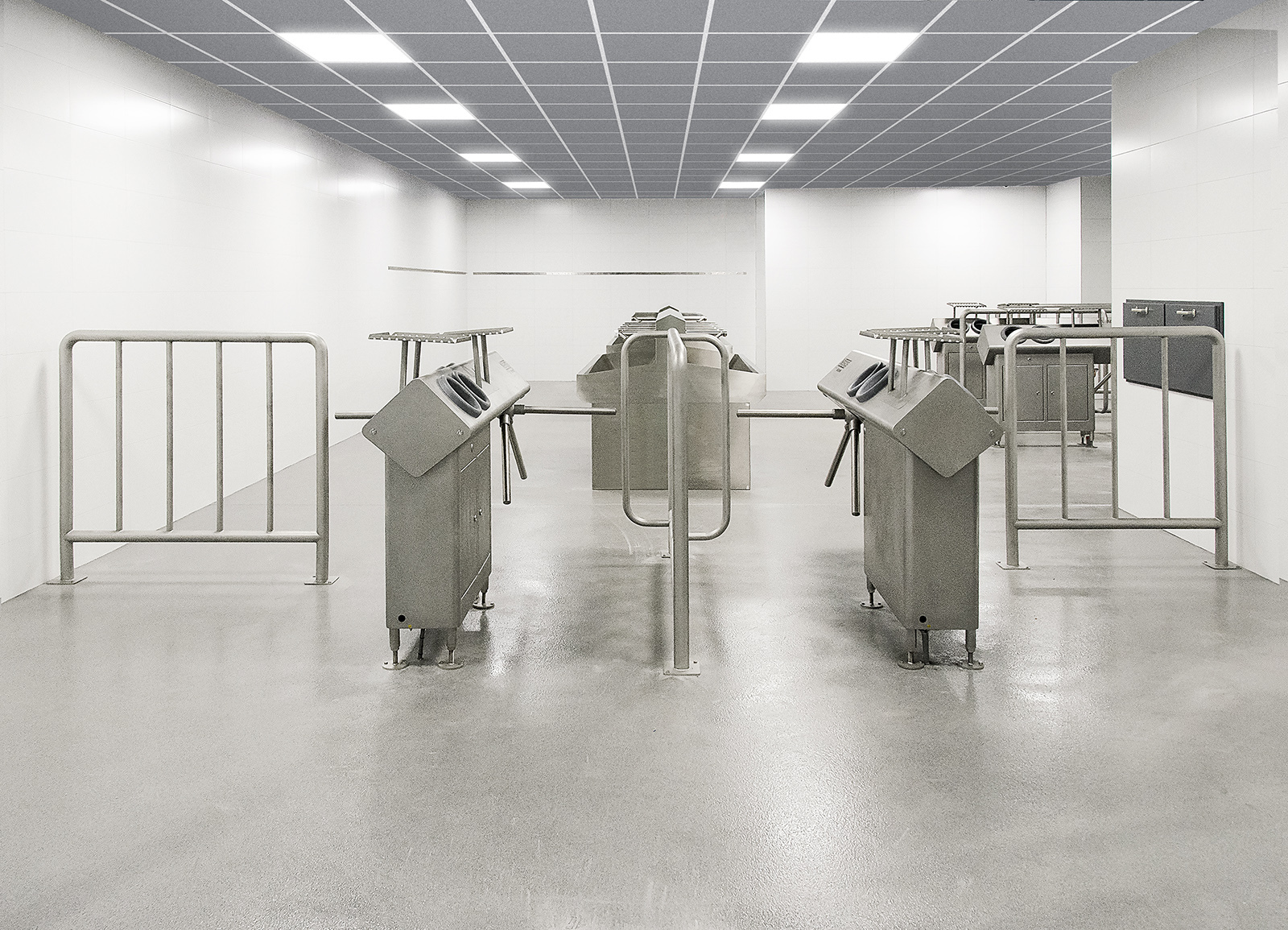

Hand chemical turnstile HDK/XXL

The HDK/XXL is an automatic dispenser that sprays the disinfectant or soap product on the hands when passers-by place both hands in the openings (protected with rubber rings). After soaping or disinfection, the turnstile is released and the person can proceed to the washbasins (after soaping) or the production space (after disinfection). The HDK/XXL is a double-sided appliance so with both 2 entering and 2 leaving sides.

The PLC can be used to set the parameters (such as chemical spraying time, turnstile locking speed, etc.) as the customer desires.

As distinct from the standard HDK, this version is provided with an in-built housing in which items such as suction lines and chemicals can be stored.

The turnstile can optionally be connected to a badge system for access registration.

Catalog Personal hygiene | BOONS FIS

Interested? Contact us

personal hygiene hand disinfection and soaping system with turnstile HDK XXL BoonsFIS

Benefits

Supplied with certificate of stainless steel used (AISI 1.4301), no use of ferritic steels (400 series) that are magnetic and liable to corrode
Everything is 100% rounded off jointless for optimal hygiene, no angles or edges where bacteria can originate
PLC control: each parameter can be set (not accessible for unauthorised persons)
With in-built housing for the storage of the chemicals
Run-dry protection: no passage when hands have not been cleaned
The suction pipes for products and nozzles are in stainless steel
Soft rubber rings to protect the hands
Room illuminated for convenient use
Available in left-hand or right-hand designs
Robust construction and elegant finish
Turnstile fully in stainless steel
Simple to maintain
Signal lights (red and green)
